NXH240B120H3Q1PG

ActiveSiC / GaN Wide-BandgapVDS 1200 VID 80 A

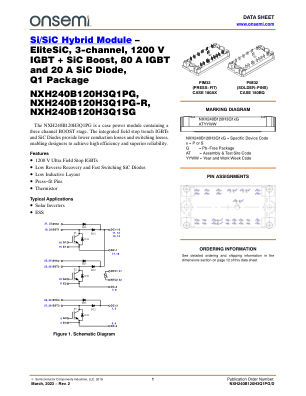

Si/SiC Hybrid Module – EliteSiC, 3-channel, 1200 V IGBT + SiC Boost, 80 A IGBT and 20 A SiC Diode, Q1 Package

Manufacturer: onsemi
Datasheet: 15 pages · 1.9 MB
Website: www.onsemi.com

Wrong information or a copyright issue? Let us know

NXH240B120H3Q1PG Key Specifications

Source: manufacturer datasheet

VDS	1200 V
ID	80 A

Technical Documents

1 document

Datasheet

NXH240B120H3Q1PG - Si/SiC Hybrid Module – EliteSiC, 3-channel, 1200 V IGBT + SiC Boost, 80 A IGBT and 20 A SiC Diode, Q1 Package
15 pages1.9 MBONSEMI-NXH240B120H3Q1PG.pdf
