SCTHS200N120G3AG

ActiveSiC / GaN Wide-BandgapVDS 1200 VID 170 ARDS(on) 9.3 mΩ

Automotive-grade silicon carbide Power MOSFET 1200 V, 9.3 mΩ typ., 170 A in a STPAK package

Manufacturer: STMicroelectronics
Datasheet: 11 pages · 612 KB
Website: www.st.com

Wrong information or a copyright issue? Let us know

SCTHS200N120G3AG Key Specifications

Source: manufacturer datasheet

VDS	1200 V
ID	170 A
RDS(on)	9.3 mΩ

Technical Documents

1 document

Datasheet

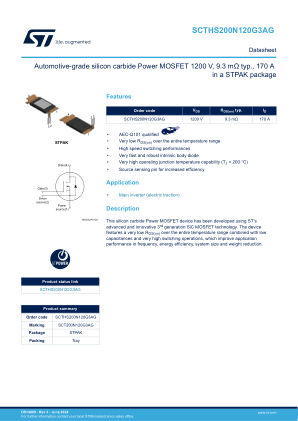

Datasheet - SCTHS200N120G3AG - Automotive-grade silicon carbide Power MOSFET 1200 V, 9.3 mΩ typ., 170 A in a STPAK package
11 pages612 KB BookmarkedST-SCTHS200N120G3AG.pdf

Alternatives

0 parts

No alternatives listed for SCTHS200N120G3AG yet.
