STGWA50HP65FB2

UnknownIGBTs / Power ModulesVDS 650 VID 50 A封装 TO-247

Trench gate field-stop, 650 V, 50 A, high-speed HB2 series IGBT in TO-3PF and TO-247 long leads packages

Manufacturer: STMicroelectronics
Package: TO-247
Datasheet: 17 pages · 748 KB · Rev 5
Website: www.st.com

Wrong information or a copyright issue? Let us know

STGWA50HP65FB2 Key Specifications

Source: manufacturer datasheet

VDS	650 V
ID	50 A
封装	TO-247

Technical Documents

1 document

Datasheet

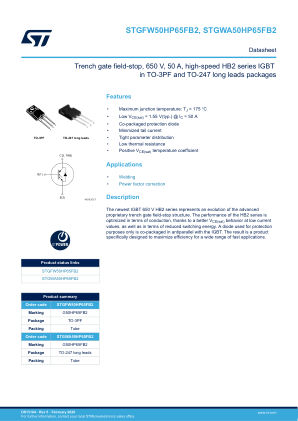

Datasheet - STGFW50HP65FB2, STGWA50HP65FB2 - Trench gate field-stop, 650 V, 50 A, high-speed HB2 series IGBT in TO-3PF and TO-247 long leads packages
17 pages748 KBRev 52026-02-01 BookmarkedST-STGWA50HP65FB2.pdf

Alternatives

0 parts

No alternatives listed for STGWA50HP65FB2 yet.
