STGWT40HP65FB

ActiveIGBTs / Power ModulesVDS 650 VID 40 A封装 TO-3P

Trench gate field-stop IGBT, HB series 650 V, 40 A high speed

Manufacturer: STMicroelectronics
Package: TO-3P
Datasheet: 17 pages · 904 KB
Website: www.st.com

Wrong information or a copyright issue? Let us know

STGWT40HP65FB Key Specifications

Source: manufacturer datasheet

VDS	650 V
ID	40 A
封装	TO-3P

Technical Documents

1 document

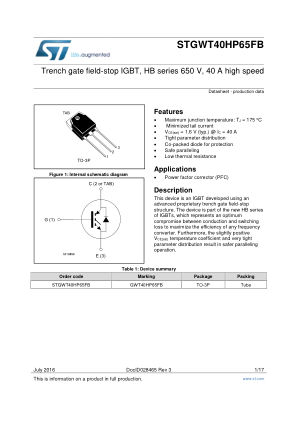

Datasheet

Trench gate field-stop IGBT, HB series 650 V, 40 A high speed
17 pages904 KBST-STGWT40HP65FB.pdf

Alternatives

0 parts

No alternatives listed for STGWT40HP65FB yet.

Where to buy

Prices and stock are set by each distributor
