74LX1GU04

ObsoleteLogic Gates / Flip-Flops输入电压 0 ~ 5.5 V封装 SOT23

Low voltage CMOS single inverter with 5V tolerant input

Manufacturer: STMicroelectronics
Package: SOT23
Datasheet: 10 pages · 123 KB
Website: www.st.com

Wrong information or a copyright issue? Let us know

74LX1GU04 Key Specifications

Source: manufacturer datasheet

输入电压	0 ~ 5.5 V
封装	SOT23

Technical Documents

1 document

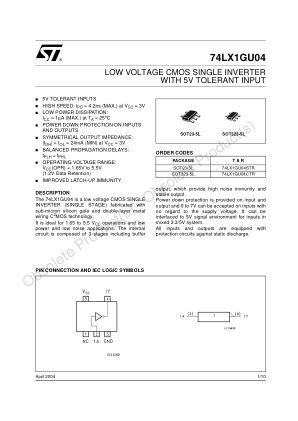

Datasheet

Low voltage CMOS single inverter with 5V tolerant input
10 pages123 KBST-74LX1GU04.pdf

Alternatives

0 parts

No alternatives listed for 74LX1GU04 yet.
