STP22NE10L

ActiveMOSFETsVDS 100 VID 22 A封装 TO-220

N - channel 100V - 0.07 Ω - 22A TO-220 STripFET™ Power MOSFET

Manufacturer: STMicroelectronics
Package: TO-220
Datasheet: 8 pages · 276 KB
Website: www.st.com

Wrong information or a copyright issue? Let us know

STP22NE10L Key Specifications

Source: manufacturer datasheet

VDS	100 V
ID	22 A
封装	TO-220

Technical Documents

1 document

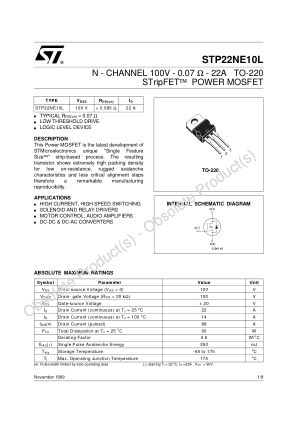

Datasheet

N - channel 100V - 0.07 Ω - 22A TO-220 STripFET™ Power MOSFET
8 pages276 KBST-STP22NE10L.pdf

Alternatives

0 parts

No alternatives listed for STP22NE10L yet.
