STP150NF04

ActiveMOSFETsVDS 40 VID 80 A封装 TO-220

N-channel 40 V, 0.005 typ., 80 A STripFET™II Power MOSFET in a TO-220 package

Manufacturer: STMicroelectronics
Package: TO-220
Datasheet: 12 pages · 392 KB
Website: www.st.com

Wrong information or a copyright issue? Let us know

STP150NF04 Key Specifications

Source: manufacturer datasheet

VDS	40 V
ID	80 A
封装	TO-220

Technical Documents

1 document

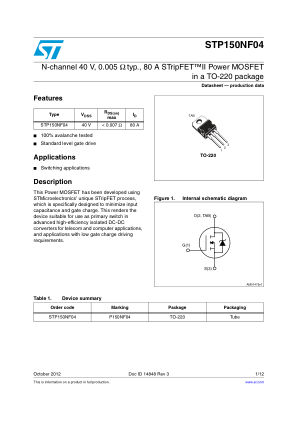

Datasheet

N-channel 40 V, 0.005 typ., 80 A STripFET™II Power MOSFET in a TO-220 package
12 pages392 KB BookmarkedST-STP150NF04.pdf

Alternatives

0 parts

No alternatives listed for STP150NF04 yet.
