STL25N15F3

ObsoleteMOSFETsVDS 150 VID 6 A

N-channel 150 V, 0.045 , 6 A PowerFLAT™ (6x5) STripFET™ III Power MOSFET

Manufacturer: STMicroelectronics
Datasheet: 12 pages · 637 KB
Website: www.st.com

Wrong information or a copyright issue? Let us know

STL25N15F3 Key Specifications

Source: manufacturer datasheet

VDS	150 V
ID	6 A

Technical Documents

1 document

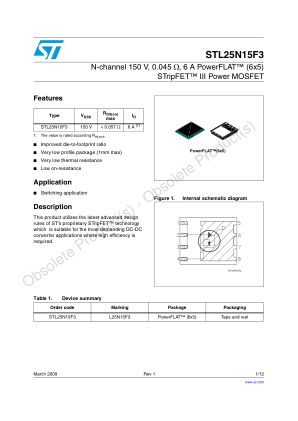

Datasheet

N-channel 150 V, 0.045 , 6 A PowerFLAT™ (6x5) STripFET™ III Power MOSFET
12 pages637 KB BookmarkedST-STL25N15F3.pdf

Alternatives

0 parts

No alternatives listed for STL25N15F3 yet.

Where to buy

Prices and stock are set by each distributor
