STGSH50M120D

ActiveIGBTs / Power ModulesVDS 1200 VID 50 A封装 ACEPACK

ACEPACK SMIT half-bridge topology 1200 V, 50 A, M series IGBT with diode

Manufacturer: STMicroelectronics
Package: ACEPACK
Datasheet: 17 pages · 1.1 MB
Website: www.st.com

Wrong information or a copyright issue? Let us know

STGSH50M120D Key Specifications

Source: manufacturer datasheet

VDS	1200 V
ID	50 A
封装	ACEPACK

Technical Documents

1 document

Datasheet

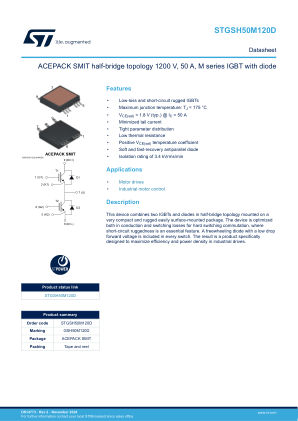

Datasheet - STGSH50M120D - ACEPACK SMIT half-bridge topology 1200 V, 50 A, M series IGBT with diode
17 pages1.1 MB BookmarkedST-STGSH50M120D.pdf

Alternatives

0 parts

No alternatives listed for STGSH50M120D yet.
