STGD6NC60H-1

ActiveIGBTs / Power ModulesVDS 600 VID 7 A封装 IPAK

N-channel 600 V, 7 A - IPAK Very fast PowerMESH™ IGBT

Manufacturer: STMicroelectronics
Package: IPAK
Datasheet: 13 pages · 370 KB
Website: www.st.com

Wrong information or a copyright issue? Let us know

STGD6NC60H-1 Key Specifications

Source: manufacturer datasheet

VDS	600 V
ID	7 A
封装	IPAK

Technical Documents

1 document

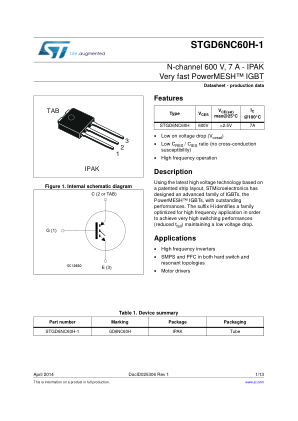

Datasheet

N-channel 600 V, 7 A - IPAK Very fast PowerMESH™ IGBT
13 pages370 KB BookmarkedST-STGD6NC60H1.pdf

Alternatives

0 parts

No alternatives listed for STGD6NC60H-1 yet.
