STF40N60M2

ActiveMOSFETsVDS 600 VID 34 ARDS(on) 78 mΩ封装 TO-220FP

N‑channel 600 V, 78 mΩ typ., 34 A MDmesh M2 Power MOSFET in a TO-220FP and TO-3PF packages

Manufacturer: STMicroelectronics
Package: TO-220FP
Datasheet: 15 pages · 760 KB
Website: www.st.com

Wrong information or a copyright issue? Let us know

STF40N60M2 Key Specifications

Source: manufacturer datasheet

VDS	600 V
ID	34 A
RDS(on)	78 mΩ
封装	TO-220FP

Technical Documents

1 document

Datasheet

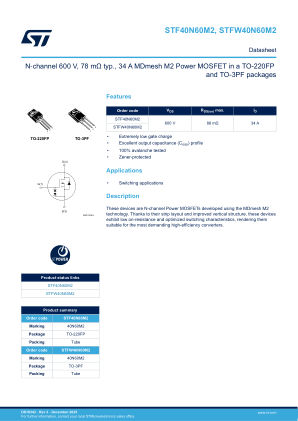

Datasheet - STF40N60M2, STFW40N60M2 - N‑channel 600 V, 78 mΩ typ., 34 A MDmesh M2 Power MOSFET in a TO-220FP and TO-3PF packages
15 pages760 KB BookmarkedST-STF40N60M2.pdf

Alternatives

0 parts

No alternatives listed for STF40N60M2 yet.
