STB100NF04T4

ActiveMOSFETsVDS 40 VID 120 A封装 TO-220

Automotive-grade N-channel 40 V, 4.3 m typ., 120 A STripFET™ II Power MOSFET in a D²PAK and TO-220

Manufacturer: STMicroelectronics
Package: TO-220
Datasheet: 20 pages · 1.1 MB
Website: www.st.com

Wrong information or a copyright issue? Let us know

STB100NF04T4 Key Specifications

Source: manufacturer datasheet

VDS	40 V
ID	120 A
封装	TO-220

Technical Documents

1 document

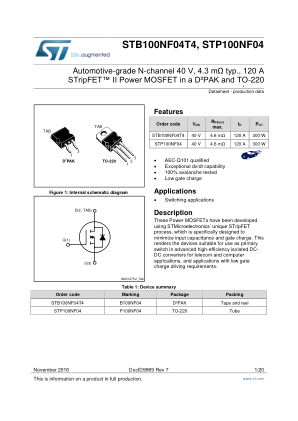

Datasheet

Automotive-grade N-channel 40 V, 4.3 m typ., 120 A STripFET™ II Power MOSFET in a D²PAK and TO-220
20 pages1.1 MBST-STB100NF04T4.pdf

Alternatives

0 parts

No alternatives listed for STB100NF04T4 yet.
