74V1T03

ObsoleteLogic Gates / Flip-Flops输入电压 4.5 ~ 5.5 V封装 SOT23

Single 2-input open drain NAND gate

Manufacturer: STMicroelectronics
Package: SOT23
Datasheet: 9 pages · 123 KB
Website: www.st.com

Wrong information or a copyright issue? Let us know

74V1T03 Key Specifications

Source: manufacturer datasheet

输入电压	4.5 ~ 5.5 V
封装	SOT23

Technical Documents

1 document

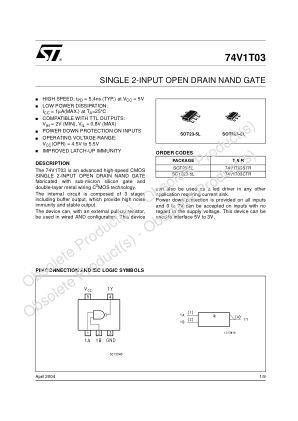

Datasheet

Single 2-input open drain NAND gate
9 pages123 KBST-74V1T03.pdf

Alternatives

0 parts

No alternatives listed for 74V1T03 yet.
