MC33286

ActiveLoad / High-Side Switches工作温度 -40 ~ 125 °C输入电压 8 ~ 40 V封装 SO20

Data Sheet

Manufacturer: NXP
Package: SO20
Datasheet: 8 pages · 348 KB
Website: www.nxp.com

Wrong information or a copyright issue? Let us know

MC33286 Key Specifications

Source: manufacturer datasheet

工作温度	-40 ~ 125 °C
输入电压	8 ~ 40 V
封装	SO20

Technical Documents

1 document

Datasheet

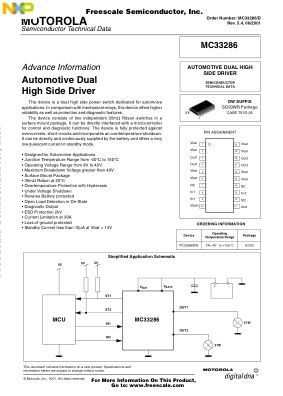

MC33286 Data Sheet
8 pages348 KB BookmarkedNXP-MC33286.pdf

Alternatives

4 parts

International brands (4)

NCP81418	onsemi	Functional equivalent	Hot Swap, Slave-Only Smart Fuse
NCP81428	onsemi	Functional equivalent	Hot Swap, Smart Fuse 18 V, 0.65 mΩ, 50 A, LQFN32
NCP81295	onsemi	Functional equivalent	Hot Swap Smart Fuse
L9733	STMicroelectronics	Functional equivalent	Automotive octal self configuring low/high side driver
