LPC2292

Active32-bit ARM Cortex-M输入电压 1.65 ~ 1.95 VFlash 256 KB封装 LQFP144

/2294 16/32-bit ARM microcontrollers; 256 kB ISP/IAP flash with CAN, 10-bit ADC and external memory interface

Manufacturer: NXP
Package: LQFP144
Datasheet: 54 pages · 429 KB
Website: www.nxp.com

Wrong information or a copyright issue? Let us know

LPC2292 Key Specifications

Source: manufacturer datasheet

输入电压	1.65 ~ 1.95 V
Flash	256 KB
封装	LQFP144

Technical Documents

1 document

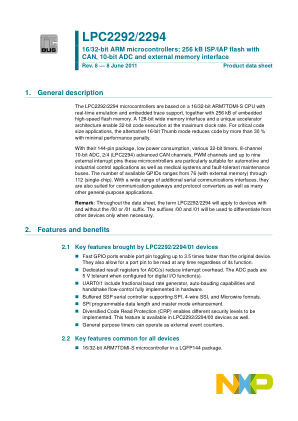

Datasheet

LPC2292/2294 16/32-bit ARM microcontrollers; 256 kB ISP/IAP flash with CAN, 10-bit ADC and external memory interface
54 pages429 KB BookmarkedNXP-LPC2292.pdf

Alternatives

0 parts

No alternatives listed for LPC2292 yet.
