STM32F446MC

量产32 位 ARM Cortex-M主频 180 MHzFlash 512 KBRAM 4 KB

Arm® Cortex®-M4 32-bit MCU+FPU, 225 DMIPS, up to 512 KB flash/128+4 KB RAM, USB OTG HS/FS, seventeen TIMs, three ADCs and twenty communication interfaces

厂商: 意法半导体（STMicroelectronics）
手册: 197 页 · 2.8 MB
官网: www.st.com

资料有误或侵权？反馈给我们

STM32F446MC 主要参数

来源：原厂数据手册

主频	180 MHz
Flash	512 KB
RAM	4 KB

技术文档

1 份文档

数据手册

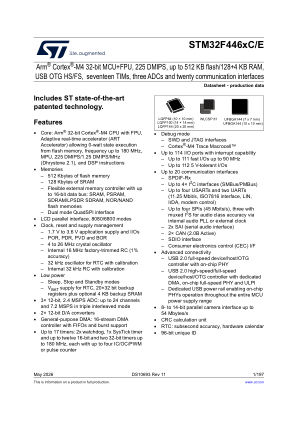

Datasheet - STM32F446xC/E - Arm® Cortex®-M4 32-bit MCU+FPU, 225 DMIPS, up to 512 KB flash/128+4 KB RAM, USB OTG HS/FS, seventeen TIMs, three ADCs and twenty communication interfaces
197 页2.8 MB 含目录ST-STM32F446MC.pdf

替代料

5 个

进口品牌 (5)

K22P121M120SF7	NXP	功能相近	Kinetis K22F 512KB Flash Data Sheet
K22P80M120SF7	NXP	功能相近	Kinetis® K22: 120MHz Cortex-M4F 256-512KB Flash 80WLCSP Data Sheet
LPC2141	NXP	功能相近	/42/44/46/48 Single-chip 16-bit/32-bit microcontrollers; up to 512 kB flash with ISP/IAP, USB 2.0 full-speed device, 10-bit ADC and DAC
WPR1516	NXP	功能相近	16 KB Flash
LPC2157	NXP	功能相近	/2158 Single-chip 16-bit/32-bit microcontrollers; 512 kB flash, with 32 segment x 4 LCD driver
