STM32F058C8

量产32 位 ARM Cortex-M主频 48 MHzFlash 64 KBRAM 8 KB封装 LQFP64

Advanced ARM®-based 32-bit MCU, 64 KB Flash, 11 timers, ADC, DAC and comm. interfaces, 1.8 V

厂商: 意法半导体（STMicroelectronics）
封装: LQFP64
手册: 104 页 · 1.6 MB
官网: www.st.com

STM32F058C8 主要参数

来源：原厂数据手册

主频	48 MHz
Flash	64 KB
RAM	8 KB
封装	LQFP64

技术文档

1 份文档

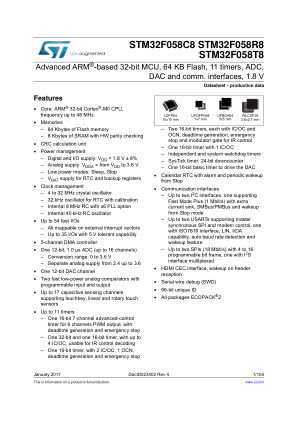

数据手册

Advanced ARM®-based 32-bit MCU, 64 KB Flash, 11 timers, ADC, DAC and comm. interfaces, 1.8 V
104 页1.6 MB 含目录ST-STM32F058C8.pdf

替代料

6 个

进口品牌 (6)

KE1XZP48M48SF0	NXP	功能相近	Kinetis KE1xZ with up to 64 KB Flash
KL13P80M48SF3	NXP	功能相近	Kinetis KL13: 48MHz Cortex-M0+ up to 64KB Flash (32 -80 pin)
KL33P80M48SF3	NXP	功能相近	Kinetis KL33: 48MHz Cortex-M0+ up to 64KB Flash (48-80 pin)
KL34P100M48SF4	NXP	功能相近	Kinetis KL34: 48MHz Cortex-M0+ 64KB Flash (64/100 pin)
KL14P80M48SF0	NXP	功能相近	Kinetis KL14: 48MHz Cortex-M0+ 32/64KB Flash (32-80pin)
KL17P64M48SF2	NXP	功能相近	Kinetis KL17: 48MHz Cortex-M0+ 32/64KB Flash (32-64 pin)

购买渠道

价格与库存以渠道为准
