STL3NK40

量产MOSFETVDS 400 VID 0.43 A封装 POWERFLAT5X5

N-channel 400 V, 4.5 typ., 0.43 A, SuperMESH™ Power MOSFET in a PowerFLAT™ 5x5 package

厂商: 意法半导体（STMicroelectronics）
封装: POWERFLAT5X5
手册: 13 页 · 637 KB
官网: www.st.com

STL3NK40 主要参数

来源：原厂数据手册

VDS	400 V
ID	0.43 A
封装	POWERFLAT5X5

技术文档

1 份文档

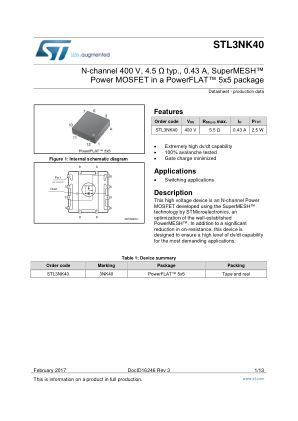

数据手册

N-channel 400 V, 4.5 typ., 0.43 A, SuperMESH™ Power MOSFET in a PowerFLAT™ 5x5 package
13 页637 KBST-STL3NK40.pdf

替代料

0 个

暂未收录 STL3NK40 的替代料信息。

购买渠道

价格与库存以渠道为准
